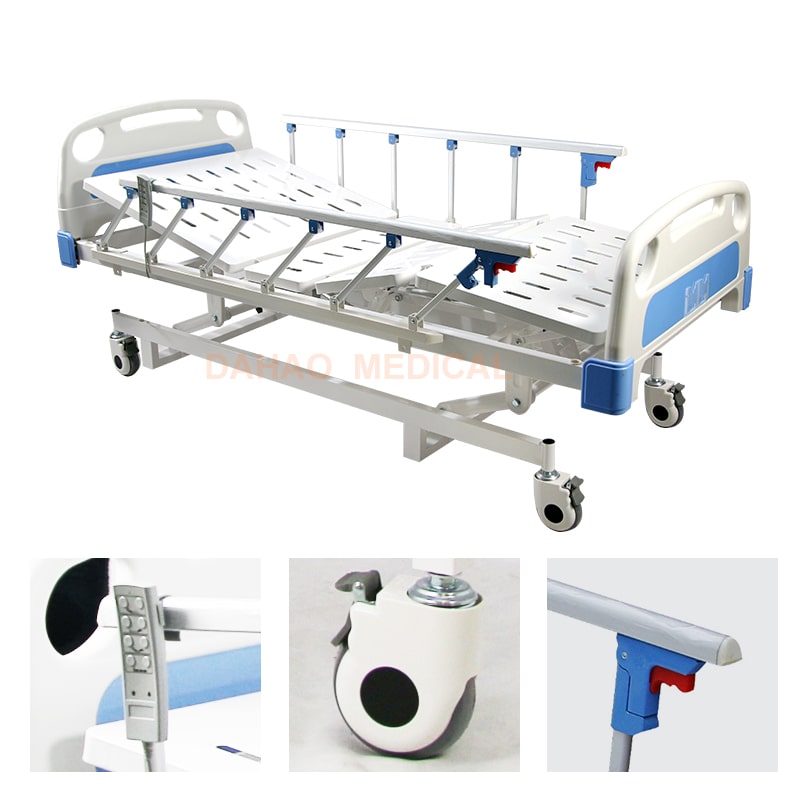

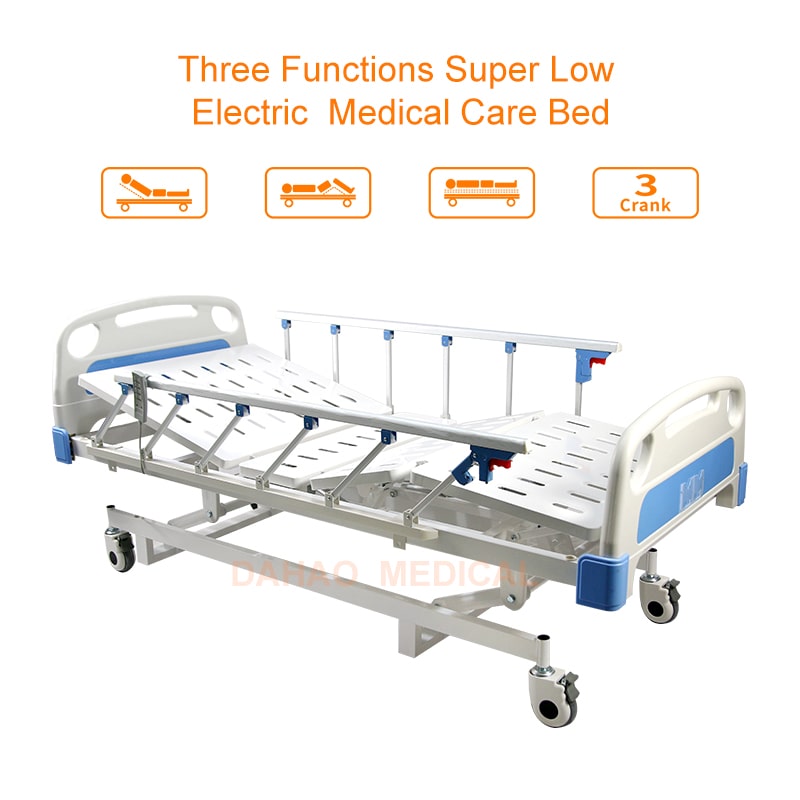

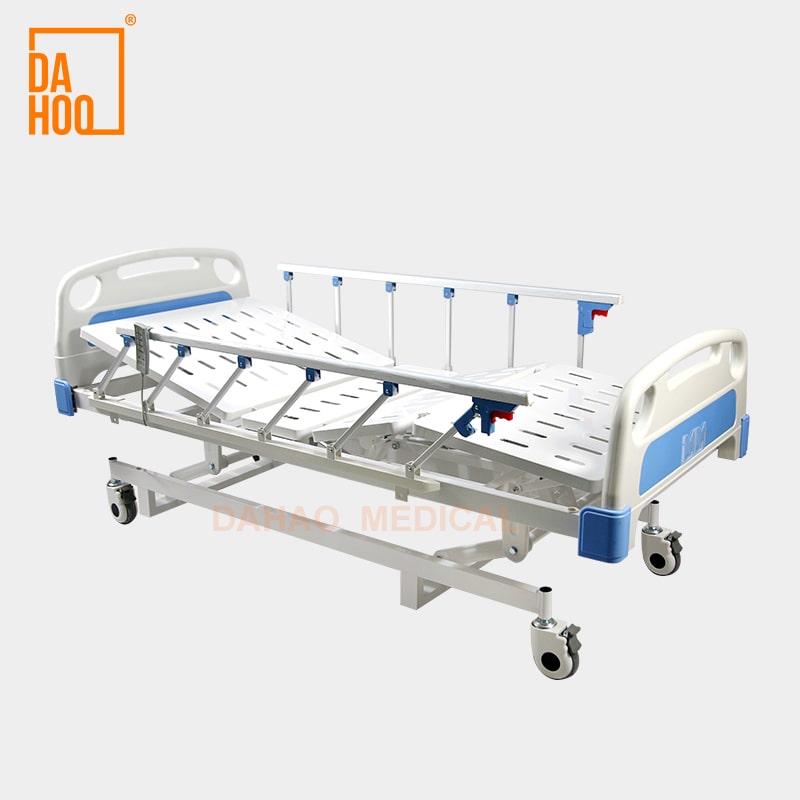

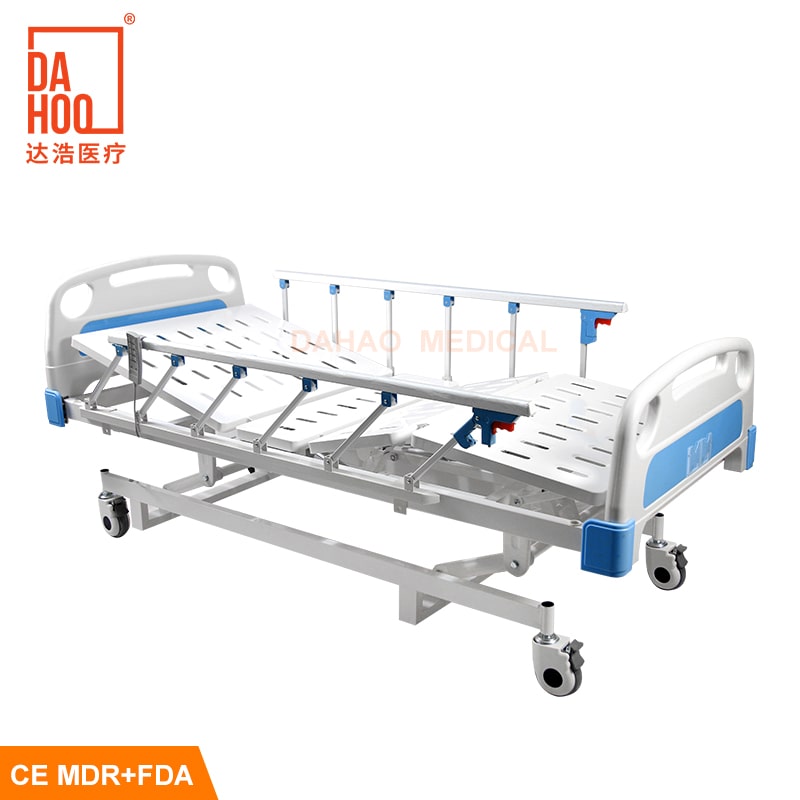

3-Section Electric Medical Bed with Super Low Height

DH6A431C-1 Designed for patient comfort and ease of care, this 3-function ultra-low electric medical bed is equipped with three adjustments (back 0-70°, knee 0-55°, calf 0-12°) and an ultra-low height adjustment range (33-69 cm) for patients with mobility issues. Featuring a durable cold-rolled steel bed frame, foldable aluminum guardrails and heavy-duty brake casters.
  • DAHOO
  • CE MDR
  • ELECTRIC
  • 175KG
  • COLD ROLLING STEEL
  • 45days after order confirmation

medical bed

Three-Section Adjustable Design

This electric medical bed is equipped with three adjustable sections, allowing caregivers to customize the bed for optimal patient comfort and medical needs:

Backrest Adjustment (0-70°): Provides support for patients in sitting or semi-sitting positions, ideal for eating, reading, or receiving therapy.

Knee Section Adjustment (0-50°): Reduces pressure on the lower back and improves circulation.

Calf Section Adjustment (0-12°): Enhances comfort for patients with leg or foot conditions.

 electric medical bed

Super Low Height Adjustment (33-69 cm)

The electric medical bed's low height feature makes it easier for patients to get in and out of bed safely, reducing the risk of falls. The electric medical bed also allows caregivers to work at a comfortable height, minimizing strain during patient care.



Foldable Medical Bed Design

The foldable aluminium alloy guardrails are a standout feature, offering safety and convenience. When not in use, the guardrails can be folded down to save space, making the electric medical bed ideal for compact environments.



Electric Medical Bed with Noiseless Motors

Powered by three quiet motors, this electric medical bed ensures smooth and silent adjustments. The included handset allows caregivers or patients to easily control the medical bed's movements without disturbing others.

 medical bed

Durable and Easy to Clean

Constructed with a durable cold-rolled steel bed sheet and detachable PP head/footboards, this medical bed is built to last. The materials are resistant to wear and tear, and the smooth surfaces make cleaning quick and hassle-free.



Heavy-Duty Diagonal Brake Castors

Equipped with four 5-inch heavy-duty castors, the electric medical bed can be moved effortlessly while ensuring stability when locked in place. The diagonal brake system provides added safety, preventing unintended movement.



IV Stand and Sockets

The electric medical bed comes with an IV stand and four sockets, making it easy to administer medications or fluids. This feature is particularly useful in hospital or clinical settings.





electric medical bed

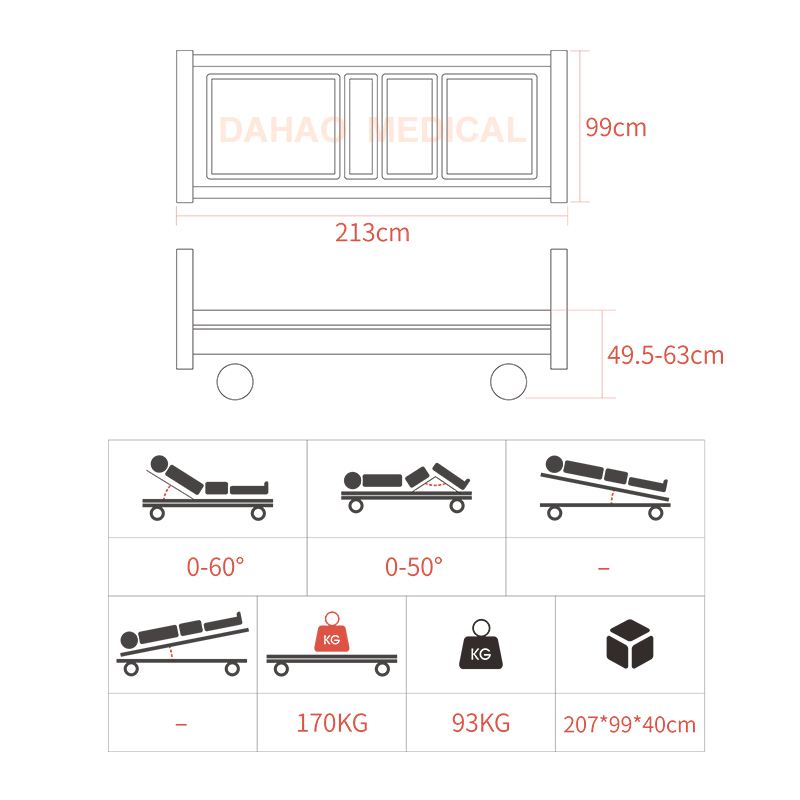

Name

DH6A431C

Guard Rail

Aluminium

Overall Length

2120±20MM

Head/Boot Board

PE

Overall Width

970±20MM

BedFrame

Durable cold rolling steel

Bedboard Size

(1975*840)±20MM

Main Frame Surface Treatment

White powder coating

Height Adjustment

330-690MM

Caster with Brake

5" /4PCS

Backrest Sections Sdjustment

0-70°

Net Weight

88 KG

Knee Sections Adjustment

0-50°

Loading Capacity

175KGS

Calf Sections Adjustment

0-12°

Electro-pneumatic

100-240V 50/60Hz  MAX 350VA

Packing Size

202*98*30CM

Electric Putter

3PCS/24VDC 6000N
