—The electric wheelchair industry is undergoing a significant technological upgrade.
In the past, people's needs for electric wheelchairs mainly focused on basic functions such as "mobility," "battery life," and "ease of operation." However, with the rapid development of an aging society and users' increasing demands for travel quality, portability, and comfort, the structural design of traditional electric wheelchairs faces new challenges. The most prominent issue is the contradiction between the weight and safety strength of the electric wheelchair frame.
For many electric wheelchair users, product weight is not just a simple parameter, but a crucial factor directly affecting daily user experience. A traditional steel-structured electric wheelchair can weigh between 70kg and 120kg. Even with a folding function, many users or their families still find it very difficult to move it. For example, putting an electric wheelchair in a car trunk, carrying it up stairs, or transferring it indoors can all increase the burden due to its excessive weight. For elderly people and people with disabilities with limited mobility, the heavier the device, the more restricted their independent mobility.
At the same time, the pursuit of lightweight design cannot be the sole focus for electric wheelchair frames. The frame, as the core load-bearing structure of the entire electric wheelchair, needs to withstand the weight of the rider, the battery, vibrations from the motor, and impacts from outdoor roads over extended periods. Insufficient material strength not only affects lifespan but can also pose safety risks. Therefore, achieving both lightness and strength in electric wheelchairs has become a crucial long-term research focus in the industry.
Carbon fiber entered the electric wheelchair field against this backdrop. As an advanced composite material previously primarily used in aerospace, high-performance automobiles, and racing bicycles, carbon fiber, with its low density, high strength, high stiffness, and excellent fatigue properties, is increasingly being used in the manufacture of high-end electric wheelchairs. Carbon fiber electric wheelchairs not only solve the problem of the heavy weight of traditional metal frames but also drive the development of electric wheelchairs towards lightweight, intelligent, and high-performance designs.
However, consumers still have many questions about carbon fiber electric wheelchairs. For example, carbon fiber appears thin, so how can it support the weight of an adult? Is carbon fiber as easily broken as glass? Carbon fiber cannot be bent like steel, so how can complex shapes be manufactured into electric wheelchair frames? The answers to these questions require in-depth analysis of the carbon fiber material itself and its manufacturing process.
Why has carbon fiber become a new choice for electric wheelchair frames?
Unlike ordinary furniture frames or simple mechanical structures, the frame of an electric wheelchair is a long-term load-bearing component. In actual use, the electric wheelchair frame not only needs to support the user's body weight but also withstand dynamic loads.
For example, an electric wheelchair might contain:
User weight: 60kg–120kg;
Battery weight: 5kg–25kg;
Motor and drive system: 10kg–30kg;
Seat, controller, and other accessories: approximately 10kg.
Therefore, the actual load-bearing capacity of an electric wheelchair may exceed 150kg. When used outdoors, the instantaneous impact force on the frame will further increase if traversing uneven surfaces, ramps, or areas requiring rapid turns.
While traditional steel has high strength, it also has a high density. The density of ordinary steel is approximately 7.85g/cm³, while the density of carbon fiber composites is typically around 1.6–2.0g/cm³. From a weight perspective, carbon fiber's density is only about one-quarter that of steel.
More importantly, carbon fiber possesses a very high specific strength, meaning it can provide a higher load-bearing capacity per unit weight. For example, high-performance carbon fiber can achieve tensile strengths in the thousands of gigapascals, while aluminum alloys, although offering significant lightweight advantages, often require increased material thickness to meet the same structural strength requirements.
Therefore, carbon fiber frames can be designed to be much lighter while meeting the same load-bearing requirements.
For carbon fiber power wheelchairs, the advantages of weight reduction are very obvious. First, the reduced overall weight makes it easier for users and their families to carry the wheelchair; second, reduced rolling resistance decreases the motor load, contributing to improved range; and third, the lightweight structure enhances maneuverability, making the electric wheelchair easier to operate in homes, communities, parks, and other environments.
This is why more and more high-end electric wheelchair brands have begun to use carbon fiber frames in recent years.
What exactly is carbon fiber? Why can it support the weight of a human body?
Many people, when first encountering carbon fiber electric wheelchairs, may think that carbon fiber is just a decorative material that looks like plastic. This is a misconception.
The carbon fiber used to manufacture electric wheelchair frames is not simply carbon material, but a carbon fiber reinforced composite material, commonly known as CFRP (Carbon Fiber Reinforced Polymer).
CFRP (Chemical Carbon Fiber Reinforced Polymer) is primarily composed of two parts:
The first part is carbon fiber.
Carbon fiber provides the main strength and stiffness. It is a continuous fibrous material composed of carbon elements, with individual fibers typically only a few micrometers in diameter, but its internal carbon atom arrangement gives it very high mechanical properties.
The second part is resin.
The resin is responsible for fixing a large number of carbon fibers into a monolithic structure, while also providing a certain degree of toughness and impact resistance.
If we use a building structure analogy, carbon fiber is like steel reinforcement, and resin is like concrete; the combination of the two forms a high-performance composite structure.
The most significant characteristic of carbon fiber is not simply its "rigidity," but rather its ability to be designed according to stress requirements.
For example, the bottom frame of an electric wheelchair primarily bears the weight of the rider, so engineers can add longitudinal fibers to improve compressive and bending resistance; the frame connection points need to withstand the torque generated by steering, so diagonal fibers can be added to improve torsional resistance.
This means that a carbon fiber electric wheelchair frame is not simply a replacement of the original material with carbon fiber, but rather a design that optimizes the performance of each area through material structure design.
Why can carbon fiber be used to create a flexible electric wheelchair frame?
"Can carbon fiber be bent?" This is one of the most frequently asked questions by consumers when purchasing carbon fiber power wheelchairs.
Strictly speaking, the answer is:
Carbon fiber material itself cannot be bent arbitrarily by external force like steel pipes. However, carbon fiber composite materials can be formed into various curved structures through manufacturing processes.
There is a fundamental difference between the two.
Steel is typically manufactured by changing its shape through machining after the material has been formed. For example, steel pipes can be bent using a bending machine or welded to form complex structures.
Carbon fiber, on the other hand, has its curved structures created during the production process.
In simple terms:
Steel is "manufactured first, then shaped."
Carbon fiber is "manufactured according to a designed shape."
Carbon fiber electric wheelchair frames are typically manufactured using a mold-forming process. During manufacturing, engineers design the mold based on the stress conditions of the frame, then lay the carbon fiber prepreg in the mold in a specified direction. After heating and pressurizing, the resin cures, ultimately forming the complete frame.
Therefore, a carbon fiber power wheelchair frame with a curved design is not created by bending the carbon fiber later; the shape is determined during the manufacturing stage.
This manufacturing method offers several advantages:
First, it enables the creation of complex structures.
Carbon fiber can be used to create integrated structures that are difficult to achieve with traditional metals, such as streamlined chassis, curved support frames, and lightweight connectors.
Second, it reduces the number of parts.
Traditional metal frames may require welding multiple parts, while carbon fiber structures can reduce connection points through integral molding, increasing overall rigidity.
Third, it optimizes weight distribution.
Engineers can adjust the material thickness in different areas according to stress conditions, achieving "strength where needed, and weight reduction where not needed."
Why don't carbon fiber electric wheelchair frames break easily?
Many users worry: "Although carbon fiber is lightweight, is it easy to break?"
This concern mainly stems from a misunderstanding of carbon fiber materials.
In reality, a qualified carbon fiber power wheelchair frame possesses very high structural strength. The aerospace industry has long used carbon fiber because it meets the requirements of high strength and long-term reliability.
However, carbon fiber and metal materials fail differently.
When metal is subjected to excessive impact, it typically exhibits:
bending;
dentation;
deformation.
When carbon fiber composite materials are subjected to severe impact, the following may occur: Internal delamination; Localized cracks; Structural damage.
Therefore, carbon fiber power wheelchairs require more stringent quality control during design and production.
For example, high-quality carbon fiber power wheelchair frames typically require: Static load testing; Fatigue life testing; Impact testing; Road simulation testing.
Assuming a user weighs 100kg and the electric wheelchair itself weighs 60kg, the frame must consider a static load of at least 160kg, while also taking into account dynamic impacts during movement.
Therefore, truly excellent carbon fiber power wheelchairs do not simply pursue lightness, but rather ensure safety while maintaining lightweight construction.
What are the advantages of carbon fiber power wheelchairs compared to traditional materials?
Currently, electric wheelchair frames mainly use three materials: steel, aluminum alloy, and carbon fiber.
Steel's biggest advantage is its low cost and mature processing, but its disadvantage is its greater weight.
Aluminum alloy is lighter than steel and is currently the most common lightweight solution on the market, but if higher performance is desired, more complex structural design is required.
Carbon fiber electric wheelchairs place even greater emphasis on high-end lightweight design.
First, carbon fiber significantly reduces weight. While meeting the same load-bearing requirements, carbon fiber structures are typically 30% to 50% lighter than steel structures.
Second, carbon fiber has high stiffness, reducing frame deformation and improving driving stability.
Third, carbon fiber has good corrosion resistance and is less affected by humid environments.
Furthermore, carbon fiber can improve vibration transmission through structural design, enhancing ride comfort.

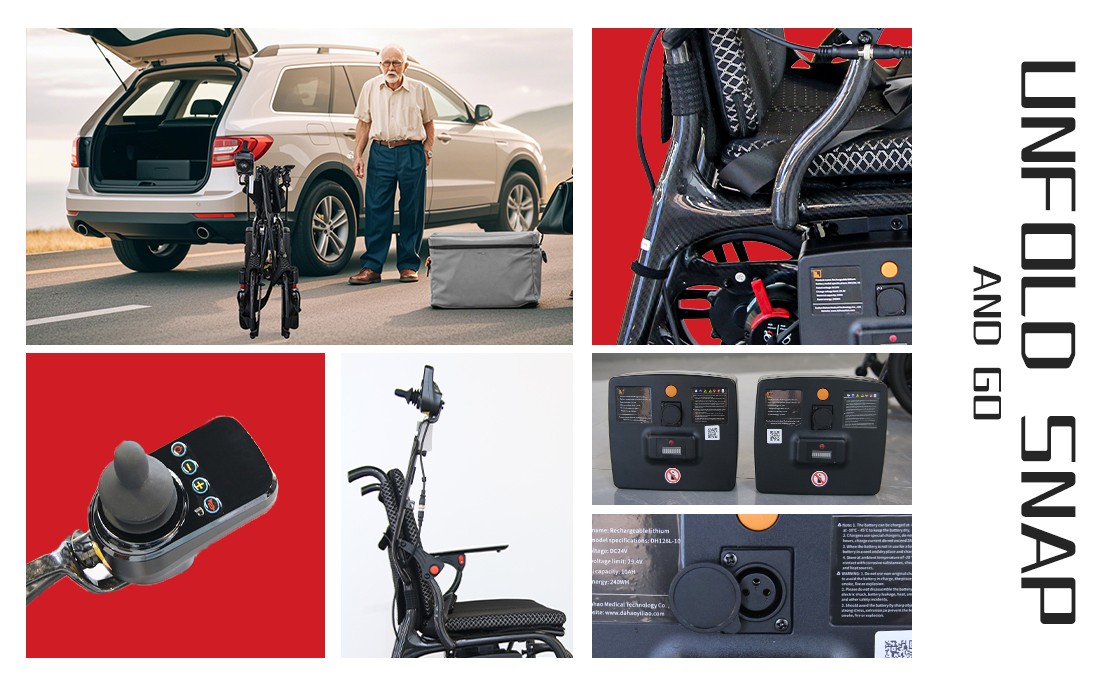

For users who frequently travel, require car transport, and prioritize portability, carbon fiber power wheelchairs offer significant advantages.
FAQ: Frequently Asked Questions about Carbon Fiber Electric Wheelchairs
Q1: How much lighter is a carbon fiber electric wheelchair compared to a regular electric wheelchair?
Generally, electric wheelchairs with carbon fiber frames are about 30% to 50% lighter than traditional steel-structured products. The specific weight depends on the battery, motor, seat, and overall design.
Q2: Can carbon fiber electric wheelchair frames be repaired?
Yes, they can be repaired, but the repair methods differ from metal frames. In the event of a severe impact, the internal structure needs to be inspected by a professional; simple welding is not an option.
Q3: Are carbon fiber power wheelchairs suitable for the elderly?
Yes. Especially suitable for elderly people and users with mobility impairments who need frequent lifting, travel, or wish to reduce the burden of operation.
Q4: Is a thicker carbon fiber frame always safer?
No. The performance of carbon fiber depends on the fiber orientation, layup design, resin quality, and the overall structural design of the electric wheelchair, not simply increasing thickness.
Q5: Why are carbon fiber power wheelchairs more expensive than ordinary products?
The main reason is the higher cost of carbon fiber materials. Furthermore, the manufacturing process requires specialized molds, precise layup techniques, and strict quality control, resulting in higher production costs than ordinary metal frames.
Q6: Will all ordinary electric wheelchairs use carbon fiber in the future?
In the short term, it will not completely replace steel and aluminum alloys because different users have different needs regarding price, performance, and weight. However, the application of carbon fiber will continue to increase in the fields of high-end electric wheelchairs, lightweight mobile devices, and smart rehabilitation products.
